Ergopower Technical Manual: Page 2
(Instructions appear below the image)

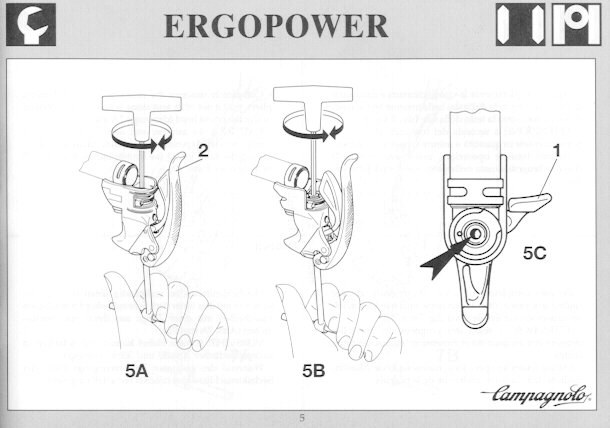

Steps 5A, 5B, and 5C (Source: Campagnolo SRL)

bulletBring the return lever "1" back to the initial position.
bulletClose the brake control lever "2".
bulletInsert a 4mm Allen wrench in the bottom (drawing 5A and 5B).
bulletKeep this wrench immobile and use a second 4mm Allen wrench to unscrew the retaining screw on the top (drawing 5C).
bulletCAUTION: to unscrew, turn left for the LH control and right for the RH control.
