Ergopower Technical Manual: Page 3
(Instructions appear below the image)

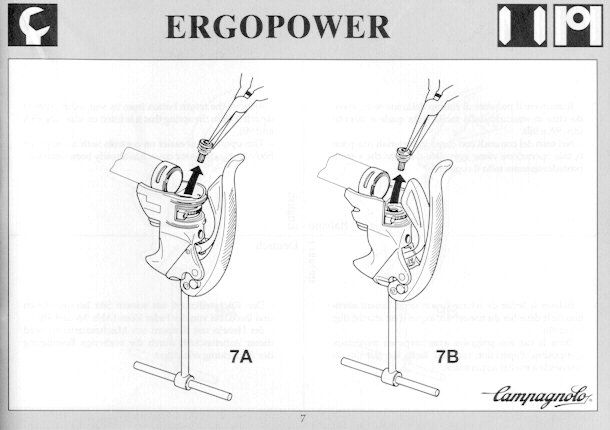

Steps 7A and 7B (Source: Campagnolo SRL)

  • Completely unscrew the retaining screw and, using pliers, pull it out of its seat along with the shims located under the screw head (drawings 7A and 7B).
  • CAUTION: the number and size (thickness) of the shims can vary depending on the individual control.
  • Keep the Allen key in the bottom immobile during all these operations.
