Ergopower Technical
Manual: Page 5
(Instructions appear below the image)

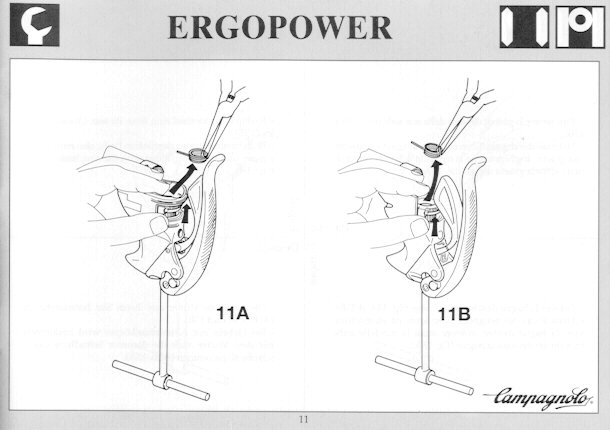

 | Using pliers, remove the return
spring (drawings 11A and 11B). |
| To remove the spring from the
control with an aluminum body, lift the toothed
ring partially from its seat (drawing 11A). |
