Ergopower Technical Manual: Page 4
(Instructions appear below the image)

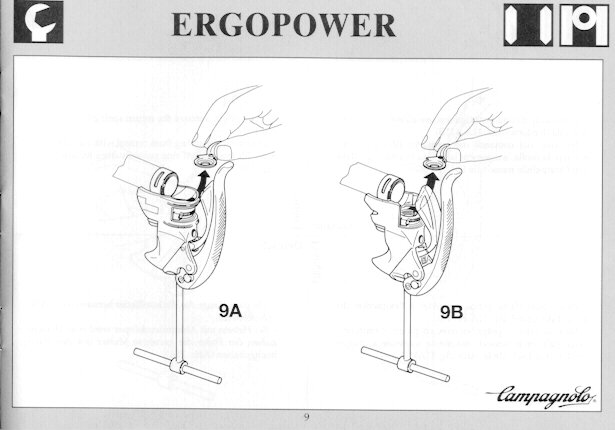

Steps 9A and 9B (Source: Campagnolo SRL)

  • Remove the return button from its seat, taking care to detach it from the spring that it is fitted on (drawings 9A and 9B).
  • This operation is easier on controls with a composite body because the rear cover has alerady been removed.
