Ergopower Technical Manual: Page 15
(Instructions appear below the image)

(Source: Campagnolo SRL)

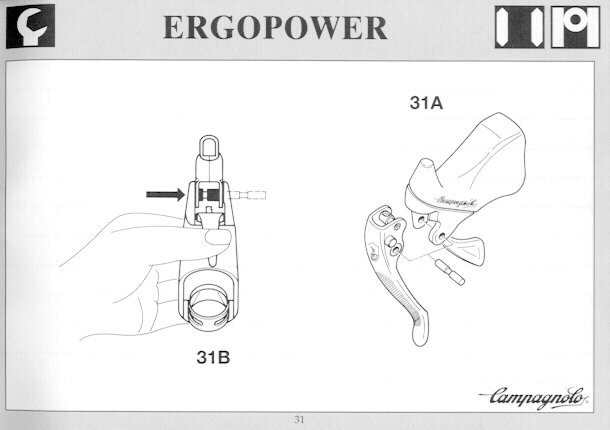

bulletTo replace the brake lever "1", remove the pin "2" by pressing it outwards.
bulletCAUTION: To remove the pin "2", push in the direction shown in drawing 31B; press from the side of the shorter resin bushing.
bulletTo reinstall the pin, always insert it from the side of the shorter resin bushing.
